Inspection case study

RAINWATER PIPE INSTALLATION

Positional discrepancies for plumbing installation have a significant knock-on effect when unnoticed, resulting in a halt to continued installations and costly reworks to MEP systems.

CONSTRUCTION REWORK SAVINGS

TIME & MATERIAL

$47K

Removing & reinstalling services; breaking concrete slabs

TIME SAVED

3.5 WEEKS

Early detection prior to concrete pour, new order of concrete, receiving new order of electrical equipment

Saved Costs

$273K

Programme delays for breaking concrete slabs; design updates

THE PROJECT

LOCATION:
DENMARK

VALUE:
€300M

INDRUSTRY:
DATA CENTRE

SIZE:
40MW

Problem

Positional discrepancies for plumbing installation have a significant knock-on effect when unnoticed. Resulting in a halt to continued installations and costly reworks to MEP systems. Incurring impacts include:

  • Need for specialist lifting equipment and personnel to access confined areas
  • Re-breaking of the slab for links to higher or lower levels
  • Timely redesigns for the connections to other services

Scope

The Main Contractor collaborated with XYZ Reality to instil the mantra of ‘Building it right, first time’. The Main Contractor aimed to inspect MEP installation before any major lifting or fitting had occurred. This scope included:

  • Providing a pre-installation check of the brackets and hangers with +/-5mm accuracy.
  • Visually exposing any clashes with coinciding services and feeding this back to the design team for additional review.

Results

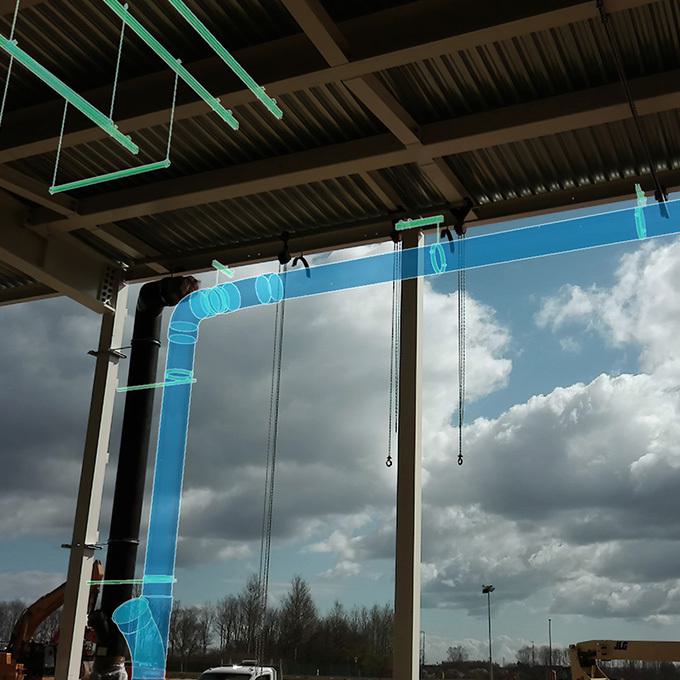

During the first Rainwater Pipe installation, The Atom pinpointed multiple positional discrepancies, including errors of 500mm horizontally and 150mm vertically during the pre-installation bracketry checks.

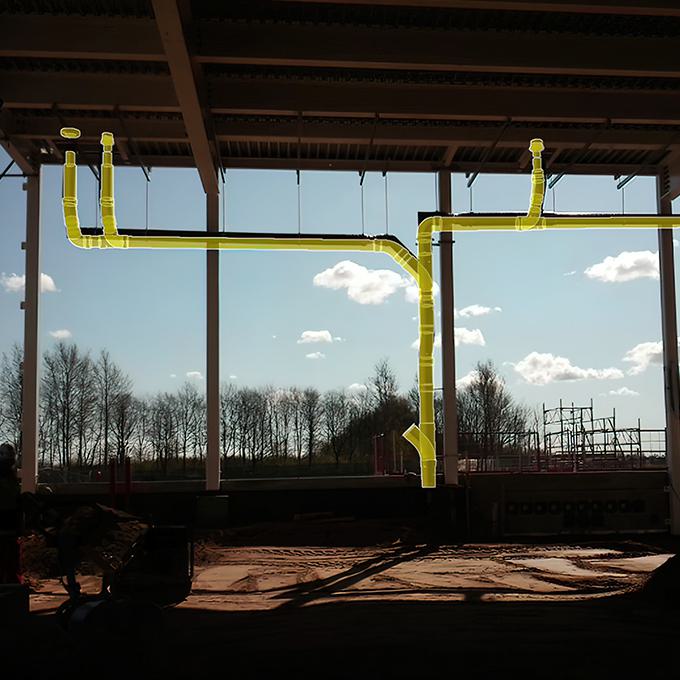

Consequently, the surface water network connections and slab penetration positions were incorrect but were detected before any major works were undertaken. The relevant contractors were directed with ample time to correct the errors before significant delays.
