Inspection case study

SUBSTRUCTURE CONCRETE WORKS

For structural concrete, any error outside of construction tolerances requires an engineering redesign and often involves costly and timely remedial works.

CONSTRUCTION REWORK SAVINGS

TIME & MATERIAL

$10K

Excavation; breaking concrete; rebuilding structure

TIME SAVED

3 WEEKS

Early detection prior to ground infill & structural steel installation

OTHER COSTS

$100K

Programme delays from structural steel installation

THE PROJECT

LOCATION:
DENMARK

VALUE:
€300M

INDUSTRY:
DATA CENTRE

SIZE:
40MW

STAGE:
FOUNDATIONS

Gravel

Client Satisfaction - Construction Manager:

"In a variable industry like construction, we always find something out of tolerance. It is important to catch these issues in advance to be fit to implement the fix prior to the next trade coming in."

Problem

For structural concrete, any error outside of construction tolerances requires an engineering redesign and often involves costly and timely remedial works:

  • Breaking, cutting, drilling concrete
  • Reordering structural reinforcement and concrete
  • Recasting the concrete and allowing for curing times

Scope

The Main Contractor partnered with XYZ Reality prior to breaking ground, for the construction of their concrete foundations to ensure that they are built correctly (+/- 5mm) and ready for the structural steel columns:

  • Incorporating The Atom into the project’s Inspection, Testing and Planning process

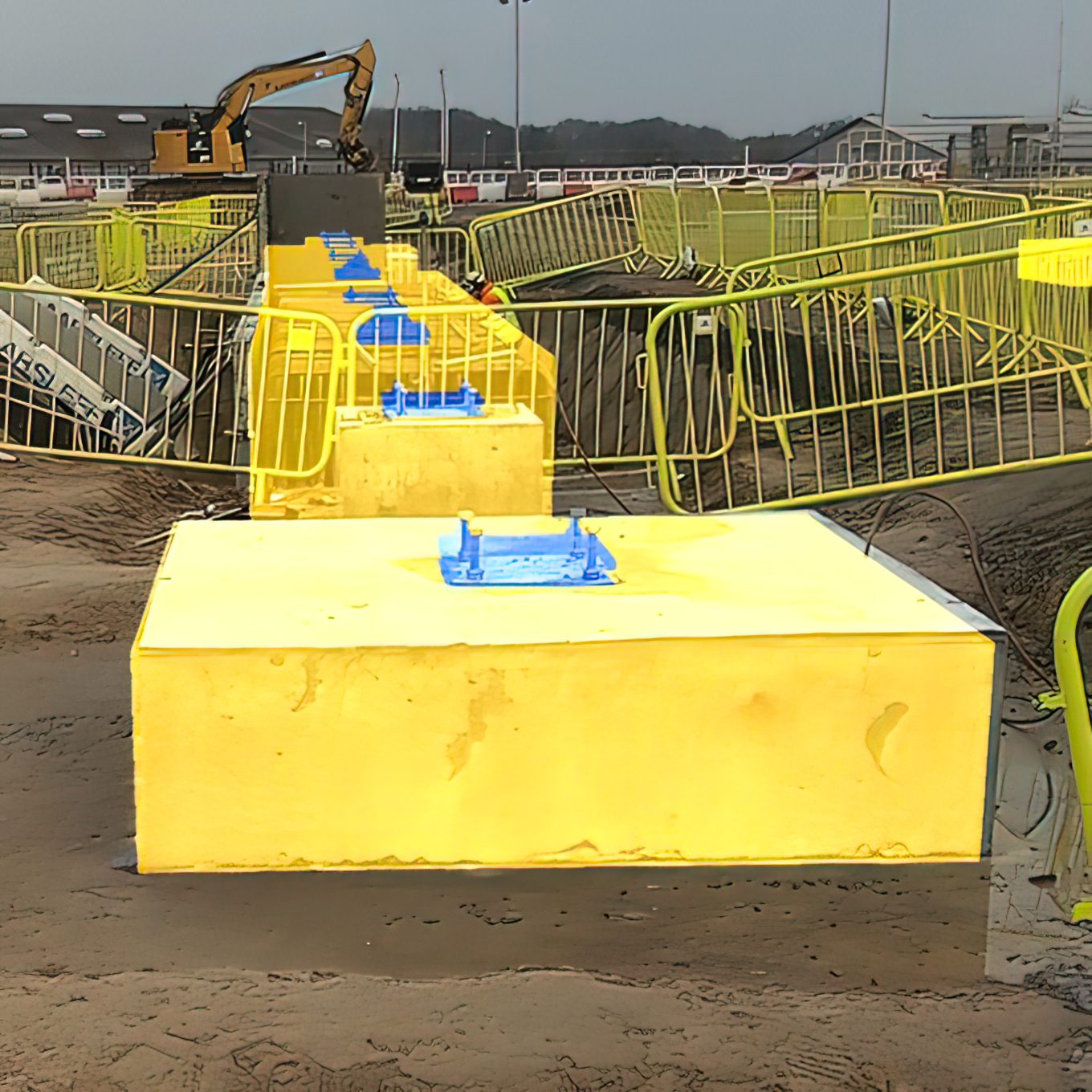

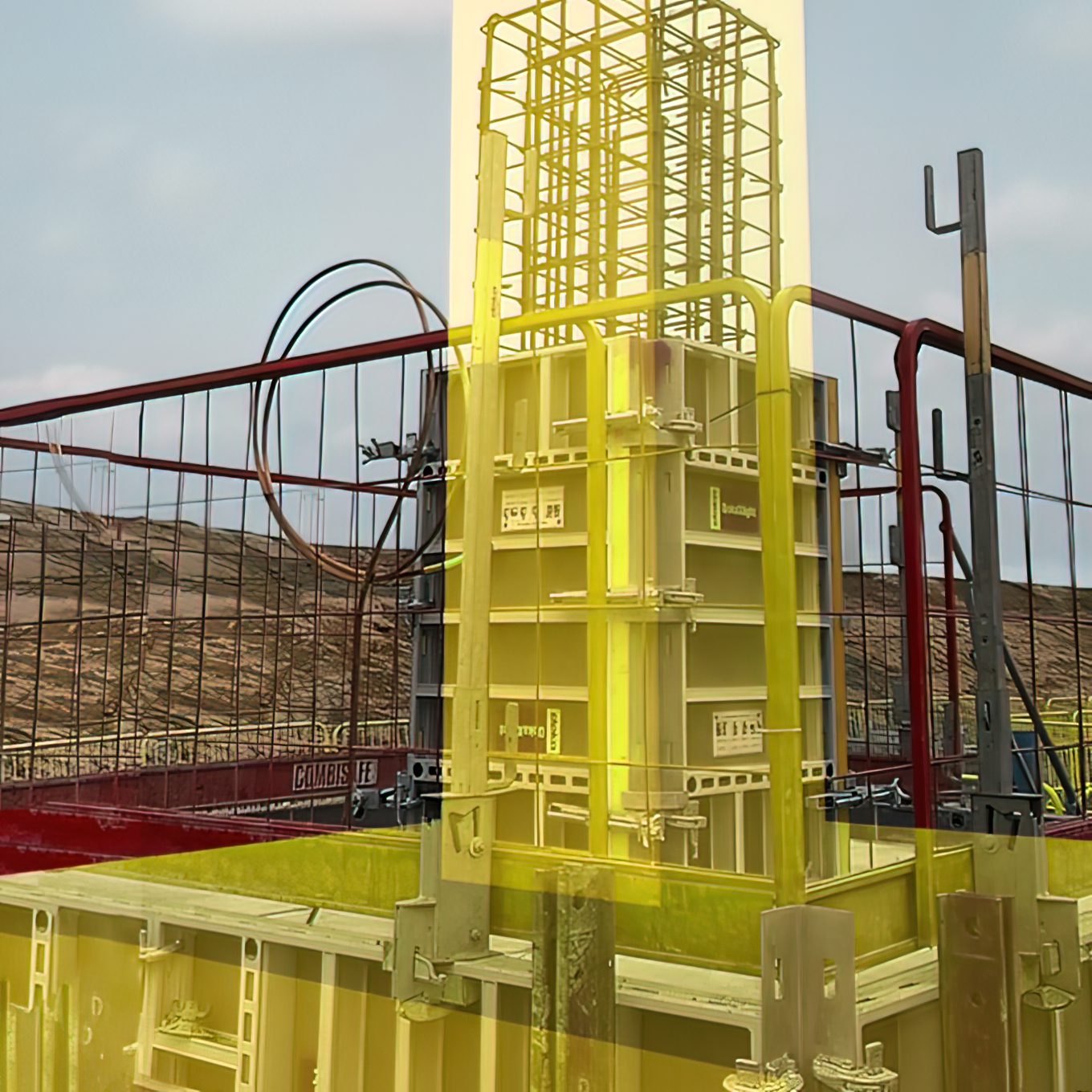

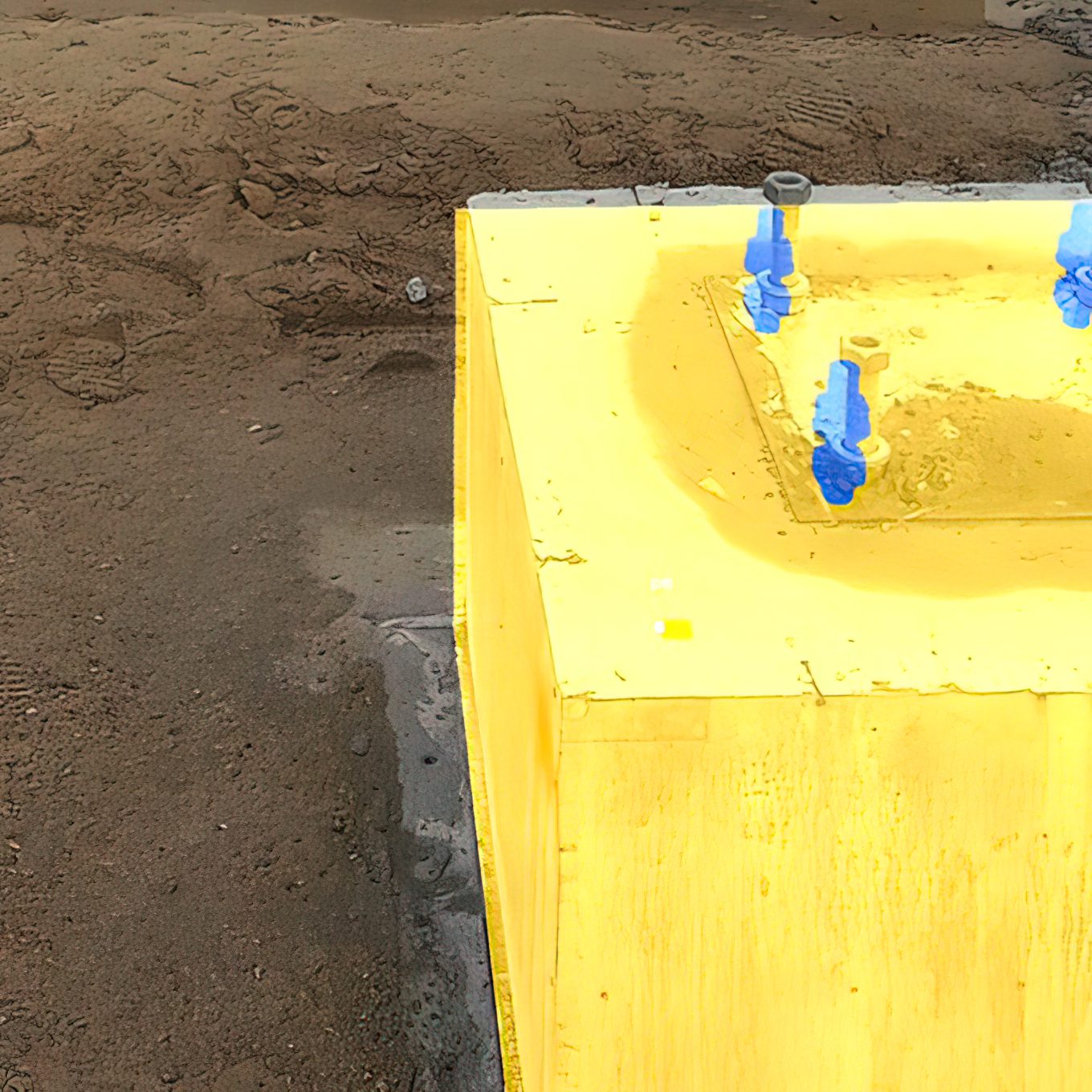

  • Inspecting the structures at the lowest value stage - during the setting-out and during the installation of the reinforcement, embedded elements (including holding-down bolts) and formwork

RESULTS

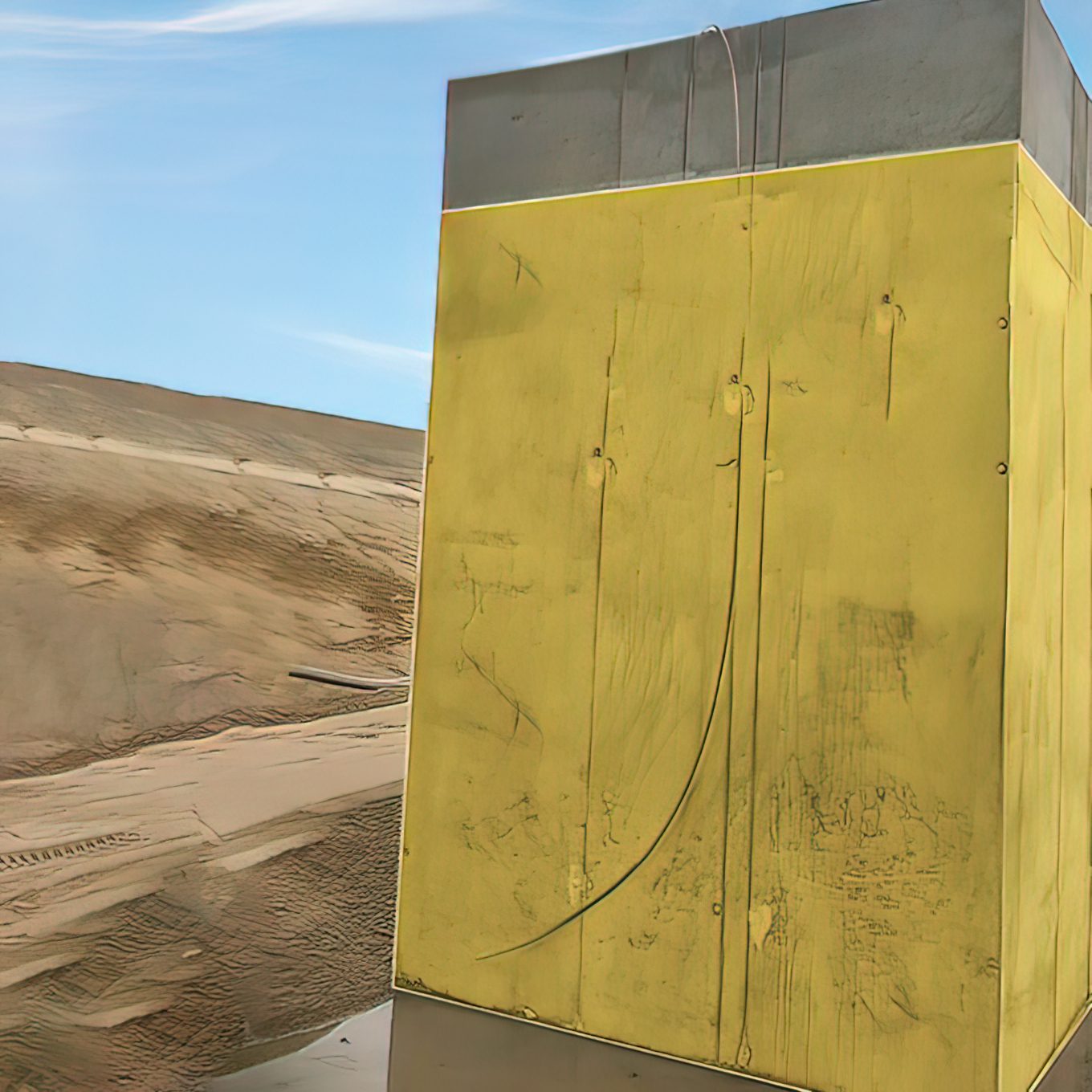

In all areas where The Atom was deployed, any errors or issues were detected prior to the concrete pour and the concrete foundations were installed within tolerances and without defects.

For the one location where The Atom could not be deployed, the concrete foundation was built 500mm out of tolerance.

However, using The Atom’s real-time validation, this issue was raised immediately and prior to any ground infill and the steel column installation
